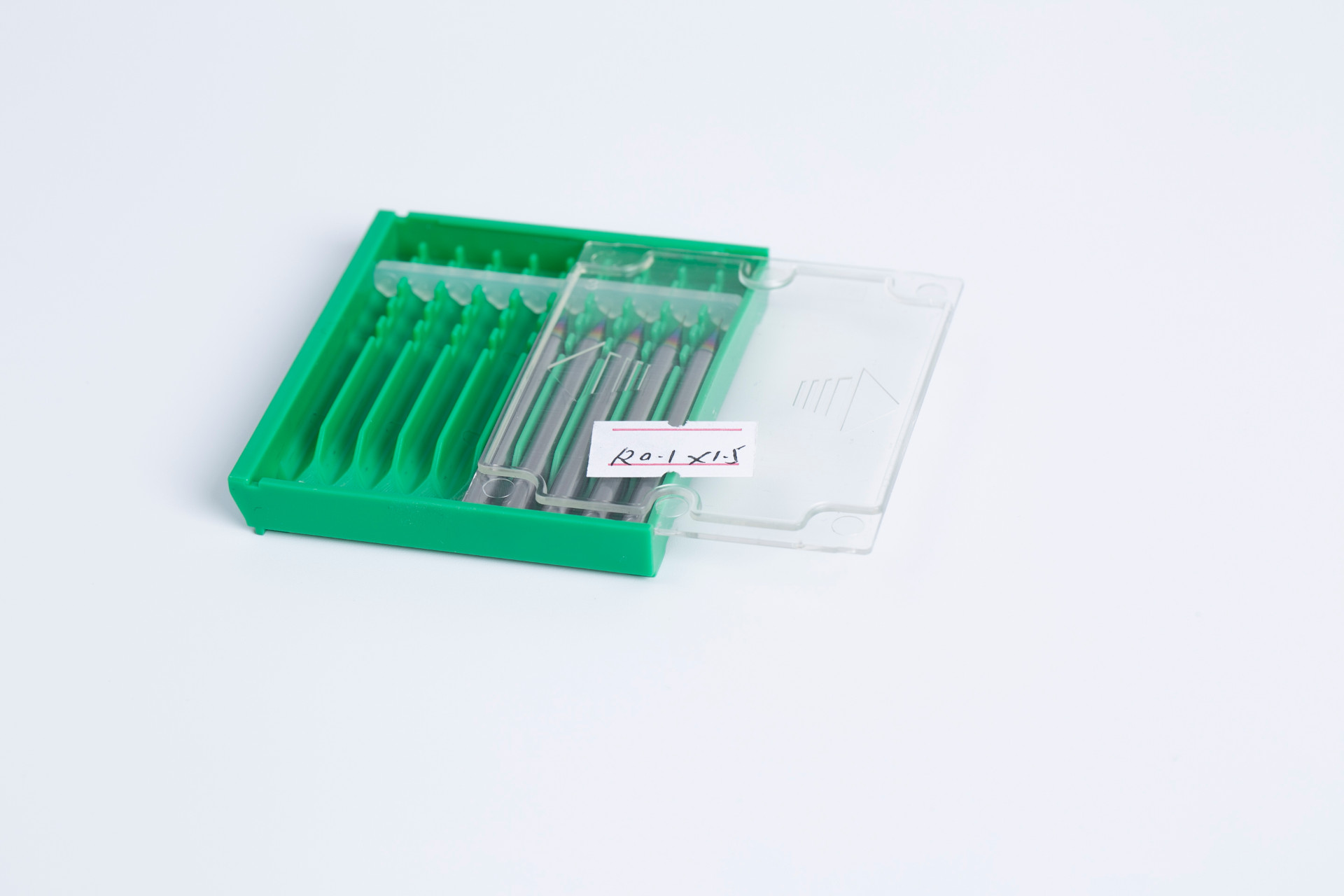

2 Flute Solid Carbide End Mill Cutter Deep Groove Aluminum Alloy

Model:

0.2mm to 0.8mm

Material: Carbide

Grain size: 0.4μm

No of Flutes: 2F

Category: Corner Radius

Coating: DLC

Inquire Now

Category:ES Copper & Aluminium Series

Product Information

Download Specification1.pdf

Download Specification2.pdf

PRODUCT DESCRIPTION ▼

● Coating material: DLC

● Friction coefficient: 0.05-0.1

● Micro hardness: 7000 HV0.05

● Solid Carbide End Mill IS Suitable for copper electrode finishing

Work Material: Aluminum Alloy / Copper Alloy / Resin/copper electrode and other non-ferrous.

Machining Application: Flat Surface / Side Surface / Curved Surface / Groove.

Solid Carbide End Mill Drawing:


Specifications:

Model (NO.)	Blade Diameter (D)	R-corner Radius (R)	Neck Length (L)	Blade Length (L)	Neck Diameter (D)	Neck Angle (γ Reference)	Shank Diameter (D)	Full Length (L)
ESR002-20020-010-04045	0.2	0.02	1	0.2	0.18	15°	4	45
ESR002-20020-015-04045			1.5	0.2	0.18	12°	4	45
ESR002-20020-020-04045			2					45
ESR002-20020-030-04045			3					45
ESR005-20020-010-04045		0.05	1	0.2	0.18	15°	4	45
ESR005-20020-015-04045			1.5	0.2	0.18	12°	4	45
ESR005-20020-020-04045			2					45
ESR005-20020-030-04045			3					45
ESR002-20030-010-04045	0.3	0.02	1	0.3	0.27	15°	4	45
ESR002-20030-015-04045			1.5	0.3	0.27	12°	4	45
ESR002-20030-020-04045			2					45
ESR002-20030-030-04045			3					45
ESR002-20030-040-04045			4					45
ESR005-20030-010-04045		0.05	1	0.3	0.27	15°	4	45
ESR005-20030-015-04045			1.5	0.3	0.27	12°	4	45
ESR005-20030-020-04045			2					45
ESR005-20030-030-04045			3					45
ESR005-20030-040-04045			4					45
ESR002-20040-010-04045	0.4	0.02	1	0.4	0.37	15°	4	45
ESR002-20040-015-04045			1.5	0.4	0.37	12°	4	45
ESR002-20040-020-04045			2					45
ESR002-20040-030-04045			3					45
ESR002-20040-040-04045			4					45
ESR002-20040-050-04045			5					45
ESR002-20040-060-04045			6					45
ESR005-20040-010-04045		0.05	1	0.4	0.37	15°	4	45
ESR005-20040-015-04045			1.5	0.4	0.37	12°	4	45
ESR005-20040-020-04045			2					45
ESR005-20040-030-04045			3					45
ESR005-20040-040-04045			4					45
ESR005-20040-050-04045			5					45
ESR005-20040-060-04045			6					45
ESR010-20040-010-04045		0.1	1	0.4	0.37	15°	4	45
ESR010-20040-015-04045			1.5	0.4	0.37	12°	4	45
ESR010-20040-020-04045			2					45
ESR010-20040-030-04045			3					45
ESR010-20040-040-04045			4					45
ESR010-20040-050-04045			5					45
ESR010-20040-060-04045			6					45
ESR002-20050-020-04045	0.5	0.02	2	0.5	0.46	12	4	45
ESR002-20050-030-04045			3					45
ESR002-20050-040-04045			4					45
ESR002-20050-050-04045			5					45
ESR002-20050-060-04045	0.5	0.02	6	0.5	0.46	12°	4	45
ESR002-20050-080-04045			8					45
ESR002-20050-100-04045			10					45
ESR005-20050-020-04045		0.05	2					45
ESR005-20050-030-04045			3					45
ESR005-20050-040-04045			4					45
ESR005-20050-050-04045			5					45
ESR005-20050-060-04045			6					45
ESR005-20050-080-04045			8					45
ESR005-20050-100-04045			10					45
ESR010-20050-020-04045		0.1	2					45
ESR010-20050-030-04045			3					45
ESR010-20050-040-04045			4					45
ESR010-20050-050-04045			5					45
ESR010-20050-060-04045			6					45
ESR010-20050-080-04045			8					45
ESR010-20050-100-04045			10					45
ESR002-20060-020-04045	0.6	0.02	2	0.6	0.56	12°	4	45
ESR002-20060-030-04045			3					45
ESR002-20060-040-04045			4					45
ESR002-20060-050-04045			5					45
ESR002-20060-060-04045			6					45
ESR002-20060-080-04045			8					45
ESR002-20060-100-04045			10					45
ESR005-20060-020-04045		0.05	2					45
ESR005-20060-030-04045			3					45
ESR005-20060-040-04045			4					45
ESR005-20060-050-04045			5					45
ESR005-20060-060-04045			6					45
ESR005-20060-080-04045			8					45
ESR005-20060-100-04045			10					45
ESR010-20060-020-04045		0.1	2					45
ESR010-20060-030-04045			3					45
ESR010-20060-040-04045			4					45
ESR010-20060-050-04045			5					45
ESR010-20060-060-04045			6					45
ESR010-20060-080-04045			8					45
ESR010-20060-100-04045			10					45
ESR020-20060-020-04045		0.2	2					45
ESR020-20060-030-04045			3					45
ESR020-20060-040-04045			4					45
ESR020-20060-050-04045			5					45
ESR020-20060-060-04045			6					45
ESR020-20060-080-04045			8					45
ESR020-20060-100-04045			10					45
ESR002-20080-020-04045	0.8	0.02	2	0.8	0.76	12°	4	45
ESR002-20080-030-04045			3					45
ESR002-20080-040-04045			4					45
ESR002-20080-050-04045			5					45
ESR002-20080-060-04045			6					45
ESR002-20080-080-04045			8					45
ESR002-20080-100-04045			10					45
ESR005-20080-020-04045		0.05	2					45
ESR005-20080-030-04045			3					45
ESR005-20080-040-04045			4					45
ESR005-20080-050-04045			5					45
ESR005-20080-060-04045			6					45
ESR005-20080-080-04045			8					45
ESR005-20080-100-04045			10					45
ESR010-20080-020-04045		0.1	2					45
ESR010-20080-030-04045			3					45
ESR010-20080-040-04045			4					45
ESR010-20080-050-04045			5					45
ESR010-20080-060-04045			6					45
ESR010-20080-080-04045			8					45
ESR010-20080-100-04045			10					45
ESR020-20080-020-04045		0.2	2					45
ESR020-20080-030-04045			3					45
ESR020-20080-040-04045			4					45
ESR020-20080-050-04045			5					45
ESR020-20080-060-04045			6					45
ESR020-20080-080-04045			8					45
ESR020-20080-100-04045			10					45
